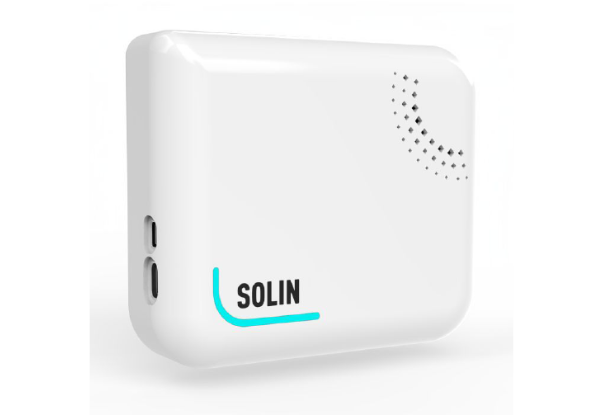

Designed for seamless integration, the Sol-In sensor is:

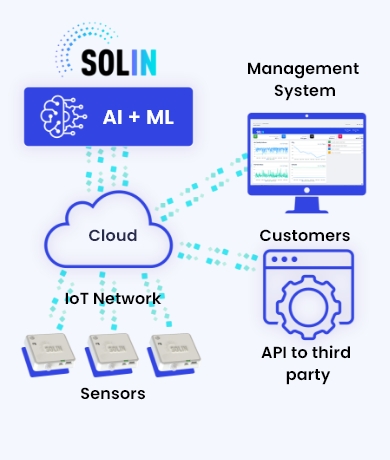

Once deployed, the sensor begins transmitting IAQ data to the cloud, enabling full-space visibility, actionable insights, and ventilation automation.
General | Processor | Quad Core Cortex-A72 |
Memory | 2GB | |
Connectivity | 2.4GHZ and 5.0 GHZ IEEE 802.11 wireles Lan BlueTooth 5.0, BLE Gigabite Ethernet | |
Input Power | 5v DC via USB-C Connector (3A) POE (optional) | |
Weight | 200 [grams] | |
Dimensions | 12.5 X 11.5 X 3 [cm] | |
Data Logger | Data Integrity | Sol-In Data logger feature |
Particulate Matter | Precision | ± 25 [ug/m3] |
Range | 0 – 1000 [ug/m3] | |
Lifetime | > 10 years | |
Size Range | PM1.0, PM2.5, PM4.0, PM10 | |
Temperature | Accuracy | ±0.45 [°C] |
Repeatability | 0.1 [°C] | |
Humidity | Accuracy | ± 4.5 [%] |
Repeatability | ± 1 [%] | |
TVOC | Range | 25 to 6000 [ug/m3] |
Accuracy | ± 15 | |
Nox | Range | 1 to 500 |
Accuracy | ± 50 | |
Co2 | Range | 0 to 40000 |
Accuracy | ± 50 [ppm] |

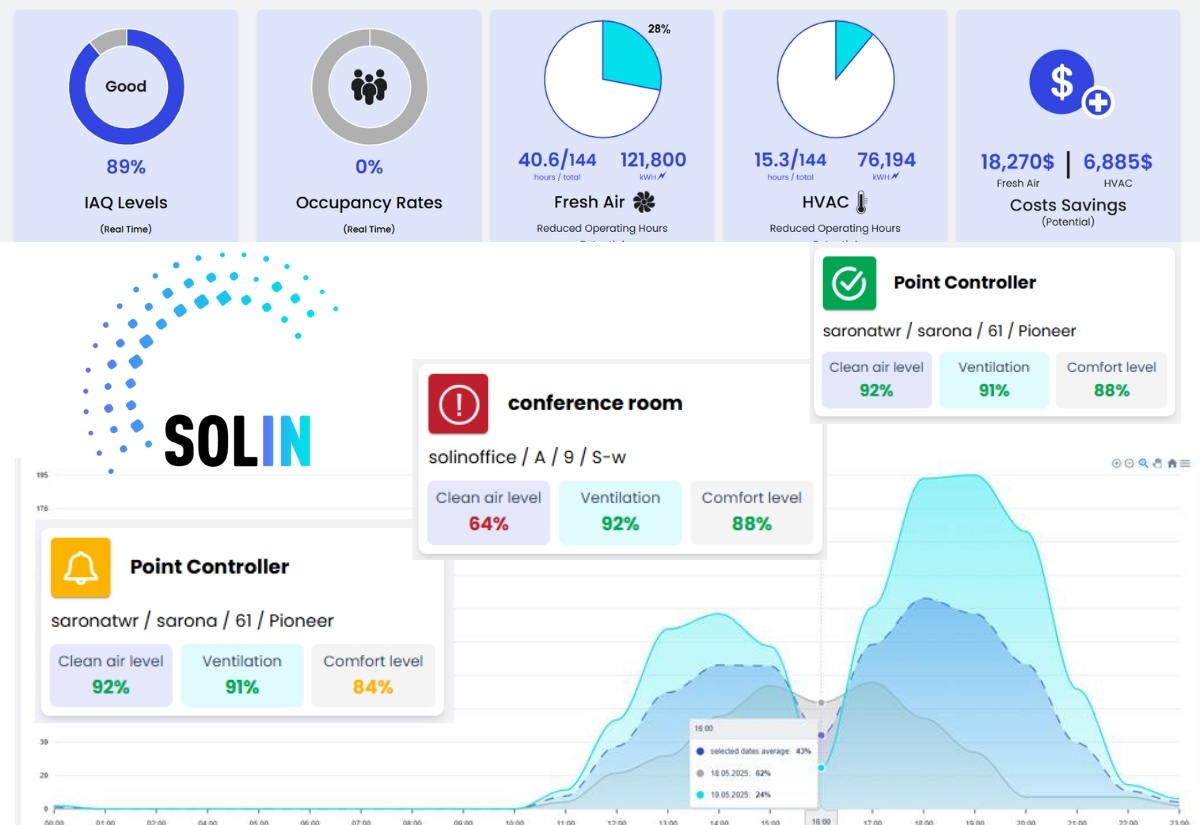

Sol-In’s intelligent dashboard gives you full visibility and control:
Empowers teams to move from reactive troubleshooting to predictive, compliance-ready optimization.
Cuts HVAC energy use by up to 30% via real-time demand-based airflow.
Learns occupancy and risk patterns to dynamically manage ventilation.
Supports Net Zero, LEED (up to 14 pts), WELL, and RESET goals.
Reduces energy and maintenance costs – payback within months.
Improves air quality, reduces complaints, and supports well-being.
Generates custom insights for ESG reporting and audits.
Works standalone or integrated with BMS/EMS platforms.
The surge in demand for Green Buildings across the world has led to a rise in green building and sustainability certificates referring to indoor’ occupants and not only outdoor sustainability implications such as WELL, RESET and LEED. The accurate and reliable IAQ data collected by Sol-In helps pave the path to successful certification.
WELL is a performance-based system that measures how certain features of the building impact its occupants’ health and wellbeing. WELL Assessors are trained to perform tests for common pollutants, such as particulate matter and other volatile substances.
RESET tests for various indoor air substances, such as TVOC, CO2, PM 2.5 and more, based on industry best practices and international standards. In order to get certified, buildings must demonstrate that their IAQ data is kept within the needed standards for three consecutive months.
The US Green Building Council has developed the Leadership in Energy and Environmental Design (LEED) certification, a globally recognized building rating system that sets minimum ventilation rates for CO2 and TVOC measurements, based on occupancy and size of the indoor space.
